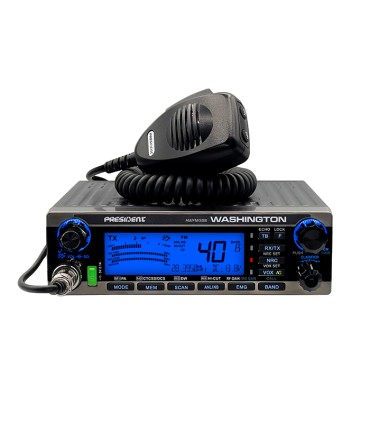

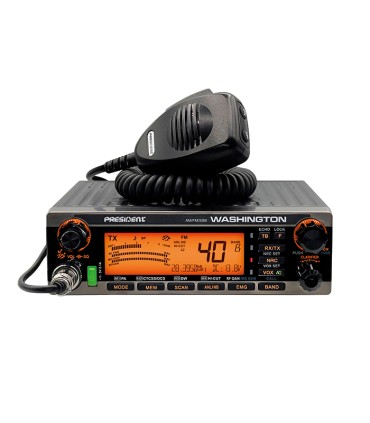

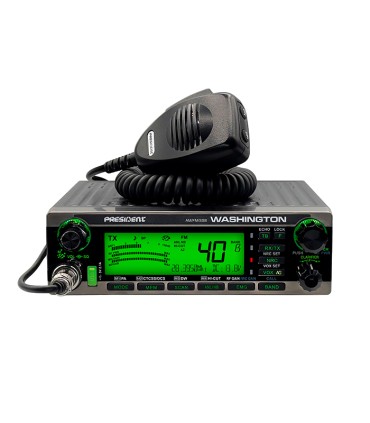

PRESIDENT CB radio, ASC AM/FM/SSB multinorm

Modulation Modes

:

AM / FM / USB/ LSB

Frequency Range

:

24.890 MHz to 24.990 MHz/
28.000 MHz to 29.700 MHz

Antenna Impedance

:

50 ohms

Power Supply

:

13.8V

Dimensions

:

185 (W) x 172(D) x 56(H)

Weight

:

1.4kg

Frequency Allowance

:

±200 Hz

Carrier Power

:

80 W PEP (AM/USB/LSB) / 50 W (FM)

Transmission interference

:

<4nW (-54dBm)

Audio Response

:

300 Hz to 3Khz

Emitted power in the adj.

:

<20mW (-17dBm)

Microphone Sensitivity

:

3.0 mV

Max. drain

:

<12A (13.8V)

Modul.signal distortion

:

2%

Maximum sensitivity
at 20 dB SINAD

:

 0.5µV-113 dBm (AM)

0.35µV-116 dBm (FM)

0.28 µV-118 dBm (USB/LSB)

Frequency response

:

300 Hz to 3 KHz

Adj. channel selectivity

:

60 dB

Maximum audio power

:

3 W

Squelch sensitivity

:

min. 0.2 μV - 120 dBm
max. 1 mV - 47 dBm

Frequency image rejection rate

:

60 dB

Intermediate frequency rejection rate

:

70 dB

Max. drain

:

200~600 mA
