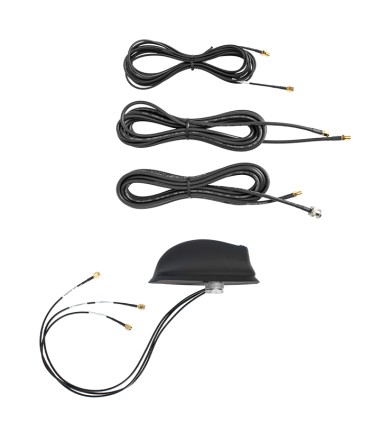

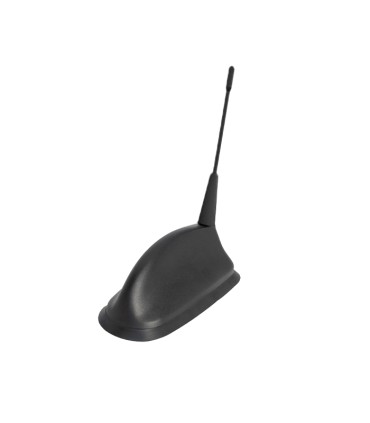

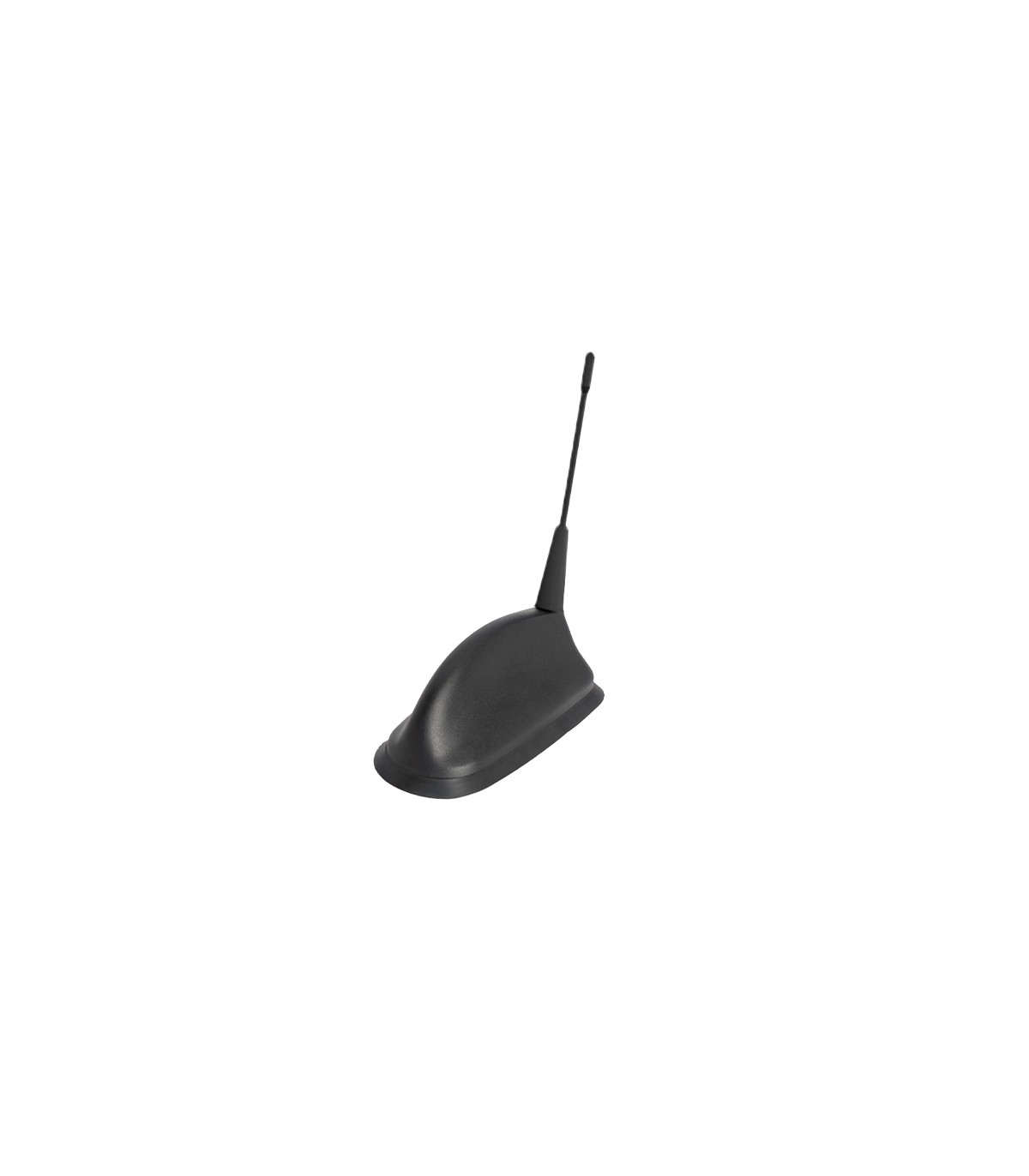

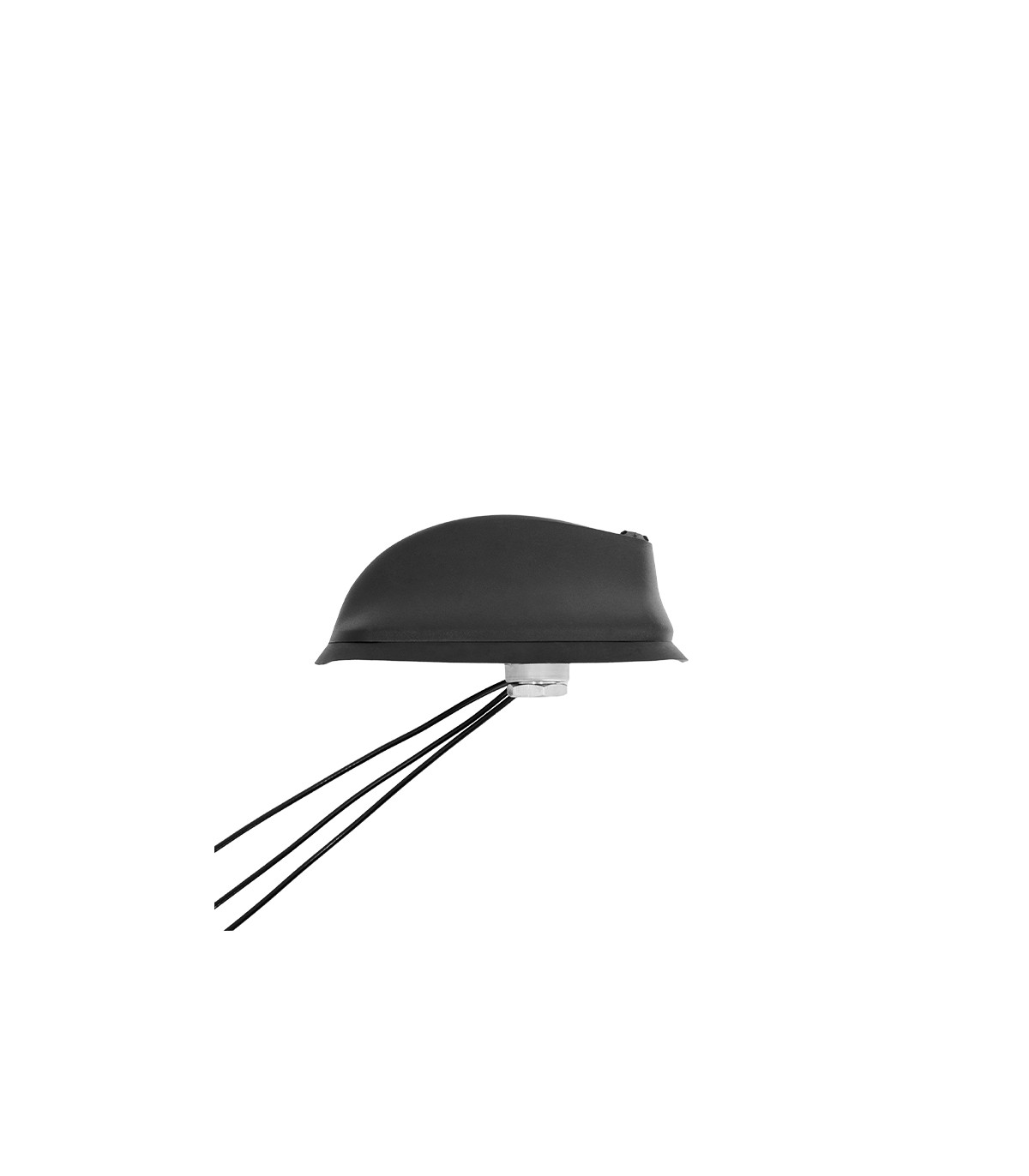

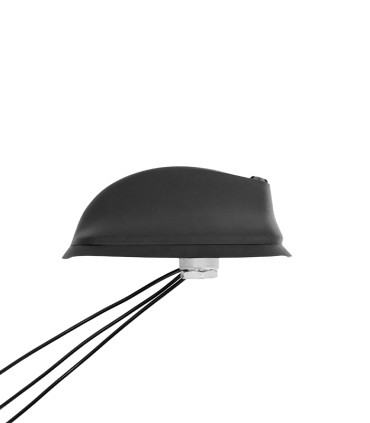

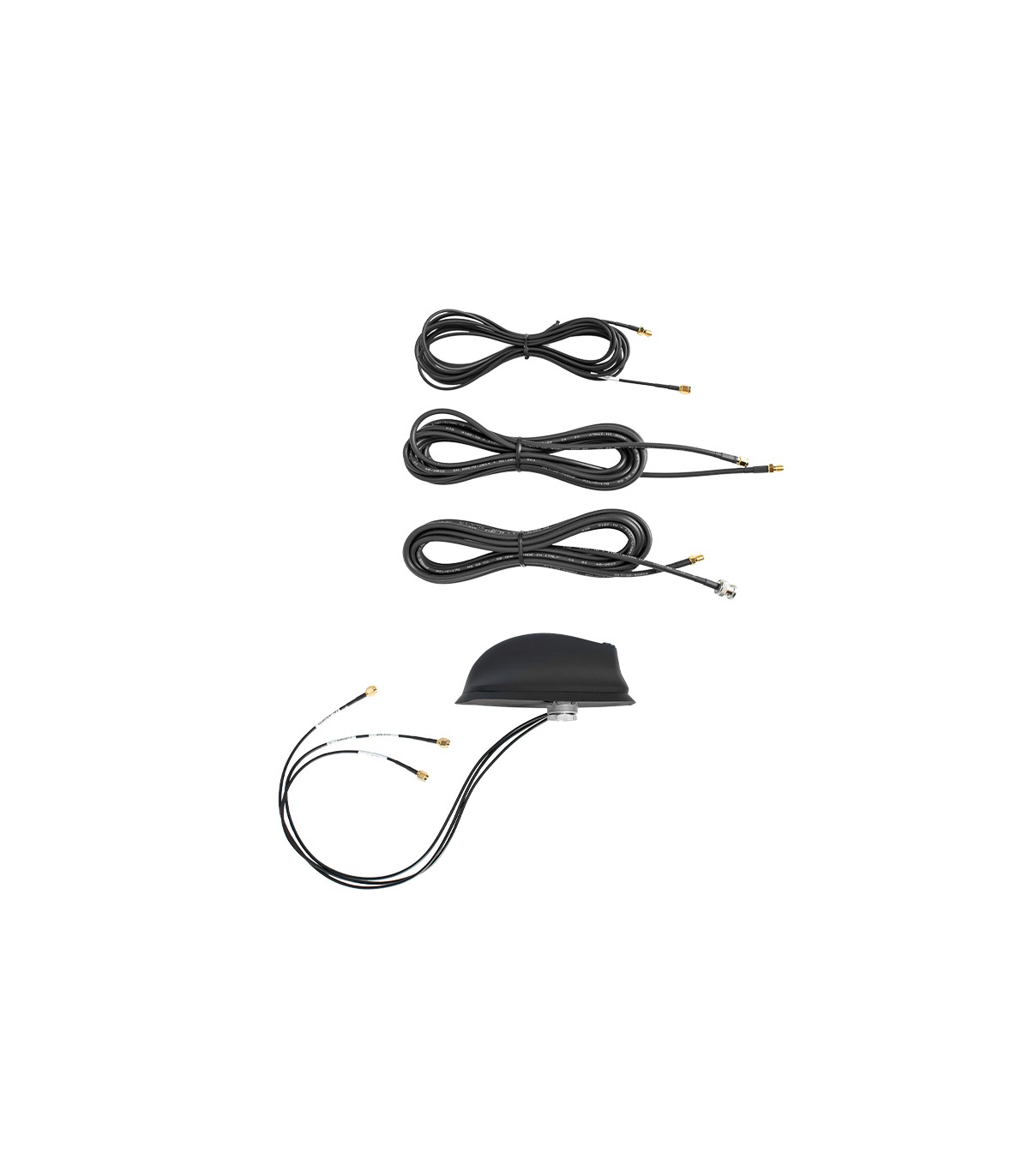

TETRA & UHF 380–470 MHz Mobile Antenna / LTE + GPS–GNSS–GALILEO

General Specifications

• Base Material: EN AW-6082 Aluminum Alloy

• Radome: Black PA6 with 30% glass fiber

• Color: Black

• Dimensions: 140 x 62 x h.52 mm

• Weight: 330 g ± 10 g

• Operating Temperature: -40ºC to +80ºC

• Mounting Hole: Square 15x15 mm / Round Ø19 mm

LTE Technical Data

• Frequency Range: AMPS/GSM 850 (824-894 MHz), GSM 900 (880-960 MHz), GSM 1800 (1710-1800 MHz), GSM 1900 (1850-1990 MHz), UMTS (1920-2170 MHz), LTE 700 (698-793 MHz), LTE 2700 (2500-2690 MHz)

• Impedance: 50 Ω

• Polarization: Vertical

• Radiation Pattern: Omnidirectional

• Gain: 2 dBi @ 890 MHz, 5 dBi @ 1710 MHz, 5 dBi @ 2690 MHz

• Cable Length: RG316 200 mm + 5 m RG174 FME extension

• Connector: SMA Male

380-470 MHz Technical Data

• Antenna Type: 1/4 λ Mobile Antenna

• Frequency Range: 380-470 MHz

• V.S.W.R: < 2.0

• Impedance: 50 Ω

• Max. Power: 20 W

• Polarization: Vertical

• Radiation Pattern: Omnidirectional

• Gain: 2.14 dBi

• Rod Length: 131 ± 3 mm

• Rod Elevation: 74º

• Cable Length: RG316 200 mm + 5 m RG58 TNC Male extension

• Connector: SMA Male

GPS/GNSS/GALILEO Technical Data

• Antenna Type: Active Planar Patch Antenna

• Frequency Range: 1580 MHz

• Bandwidth: ± 28 MHz

• V.S.W.R: < 2.0

• Impedance: 50 Ω

• Polarization: RHCP

• Supply Voltage: 2.7 ÷ 5.1 V

• Current Consumption: 10 ± 1 mA @ 2.7 V, 16 ± 1 mA @ 5 V

• Amplifier Gain: 18 ± 1 dB @ 2.7 V, 22 ± 1 dB @ 5 V

• Patch Antenna Gain: 2 dB

• Noise Figure: 1.7 ÷ 2.1 dB

• Operating Temperature: -40ºC to +80ºC

• Cable Length: RG316 200 mm + 5 m RG-174 SMA Male extension

• Connector: SMA Male
