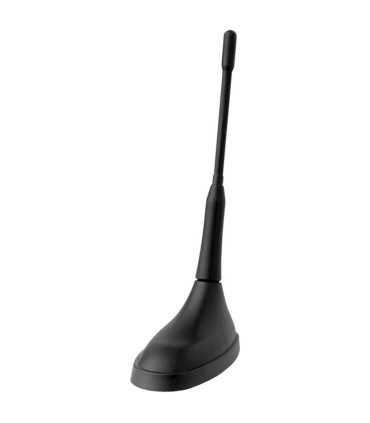

Professional TETRA Antenna + WIFI/BLUE + GPS

Specifications

• Coating Material: Polyamide 6

• Gasket Material: Arnitel EM 400

• Rod Material: Moplen + Rubber 50 Sh.

• Rod Section: Elevation: 74º, Length: 143±5 mm

• Color: Black

• Weight: 180±20 g

• Base Dimensions: 95mm x 52mm

• Slot: Square: 15x15 mm, Round: Ø 19 mm

• Temperature: -40ºC - +80ºC

GPS/GNSS/GALILEO Technical Data

• Antenna Type: Active Flat Antenna

• Impedance: 50 Ω

• Frequency Range: 1580 MHz

• Bandwidth: ± 28 MHz

• V.S.W.R: Less than 2.0

• Polarization: RHCP

• Supply Voltage: 2.7 ÷ 5.1 V

• Current Draw: 10 ± 1 at 2.7 V, 16 ± 1 at 5.0 V

• Amplifier Gain: 18 ± 1 at 2.7 V, 22 ± 1 at 5.0 V

• Patch Antenna Gain: 2dB

• Noise Figure: 1.7 ÷ 2.1 dBi

• Temperature: -40ºC - +80ºC

• Cable Length: RG-174 300 ± 20 mm

• Connector: FME f.

• Extension Cable: RG-58 (5.000 mm), FME m - SMA m

TETRA 380-430MHz Technical Data

• Antenna Type: Mobile Antenna 1/4 λ

• Frequency Range: 380 ÷ 430 MHz

• Impedance: 50 Ω

• Maximum Power: 20 W

• V.S.W.R: Less than 1.8

• Polarization: Vertical

• Emission: Omnidirectional

• Gain: 2.14 dB

• Cable Length: RG-316, 300 ± 20 mm

• Connector: FME m.

• Extension Cable: RG-58 (5.000 mm), FME f./ TNC m

TETRA 2.4 ÷ 5.8GHz Technical Data

• Antenna Type: Mobile Antenna 1/4 λ

• Frequency Range: 2400 ÷ 2.485 MHz, 5.250 ÷ 5.850 MHz

• Impedance: 50 Ω

• Maximum Power: 10 W

• V.S.W.R: Less than 3.0

• Polarization: Vertical

• Emission: Omnidirectional

• Gain: 2.14 dB

• Cable Length: RG-174, 220 ± 20 mm

• Connector: SMA m.

• Extension Cable: RG-58 (5.000 mm), SMA f./ SMA m
