LPM-002

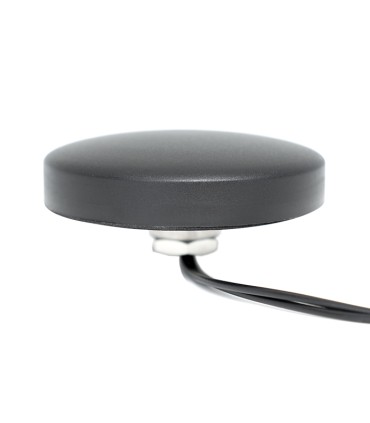

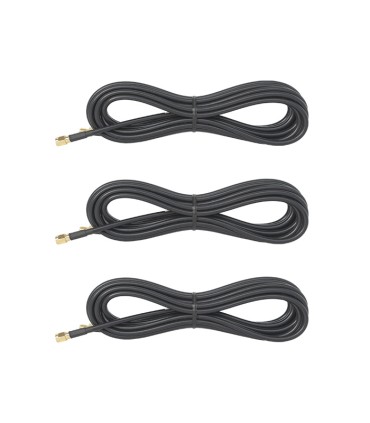

Low Profile Triband Antenna GPS/LTE/WLAN

Specifications

Specifications

Base Material: PA6

Radome PA6

Colour: Black

Dimensions (mm): Ø 100 x h.25mm

Temperature (ºC): -40°C/+80°C

Mounting hole: Ø 16mm

Technical Data GPS/GNSS/GALILEO

Antenna Type: Active Planar Patch Ant.

Center Frequency: 1580 MHz

Bandwidth: ± 28 MHz

V.S.W.R: Less than 2.0

Impedance: 50 Ω

Polarization: RHCP

Supply Voltage: 2.7 ÷ 5.1V

Current Absorption:  10 ± 1 mA at 2.7 V  16 ± 1 mA at 5.0 V

Gain Amplifier: 18 ± 1 dB at 2.7 V   22 ± 1 dB at 5.0 V

Gain Patch Antenna: 2 dB

Noise figure: 1.7 ÷ 2.1 dB

Temperature: -30ºC ÷ +80ºC

Cable lenght: RG-58 5.000mm

Connector: SMA.

Technical Data LTE

Frequency Range:

AMPS/GSM 850 : 824 - 894 MHz

GSM 1800 : 1710 -1880 MHz

GSM 1900: 1850 - 1990 MHz

UMTS : 1920 - 2170 MHz

LTE700 : 746 - 793 MHz

LTE2700 : 2500 - 2690 MHz

Gai (dBi): 2.5 ± 1 698-960 MHz    3.5 ± 1 1710-2690 MHz

Isolation (dB): 690-960 - >10   1710-2690 - >15

Impedance: 50 Ω

Max. Power: 20 W

V.S.W.R: Less than 2.2

Polarization: Vertical

Cable: RG58 mm.500

Connector: SMA m.

Technical Data WLAN

Frequency: 2400-248 5 MHz   5250-5850 MHz

Impedance: 50 Ω

V.S.W.R < 2.2

Gain:

698-960 MHz 2dBi

1710-2170 MHz 5dBi

2396-2700 MHz 6dBi

3400-3800 MHz 4dBi

Polarization: Vertical

Emission: Omnirectional

Gain: 1.5 ± 0.5 dBi 2400 - 2485 MHz   1.5 ± 0.5 dBi 5250 - 5850 MHz

Cable: RG58 mm.500

Connector: SMA m.

EAN:8435757703300
