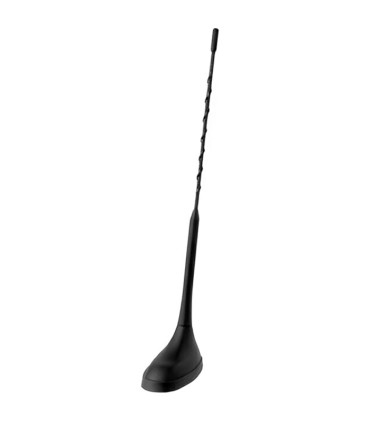

Professional Antenna TETRA + 4G + GPS

Specifications

• Base Dimension: 95mm x 52mm

• Slot: Square: 15x15 mm, Round: Ø 19 mm

• Coating Material: PA 6

• Gasket Material: Arnitel EM400

• Rod Material: Pibiflex 2564

• Color: Black

• Weight: 230 g

• Temperature: -40ºC - +80ºC

GPS/GNSS/GALILEO Technical Data

• Antenna Type: Active Flat Patch Antenna

• Impedance: 50 Ω

• Frequency: 1580 MHz

• Bandwidth: ± 28 MHz

• V.S.W.R: < 2.0

• Polarization: RHCP

• Supply Voltage: 2.7 ÷ 5.1 V

• Current Draw: 10 ± 1 at 2.7 V, 16 ± 1 at 5V

• Amplifier Gain: 18 ± 1 at 2.7 V, 22 ± 1 at 5V

• Patch Antenna Gain: 2dB

• Noise Figure: 1.7 ÷ 2.1 dB

• Temperature: -30ºC - +80ºC

• Cable Type and Length: RG-174, 180 ± 20mm

• Connector: SMA m.

UHF Technical Data

• Antenna Type: Mobile Antenna 5/8 λ

• Frequency Range: 380 ÷ 410 MHz

• Impedance: 50 Ω

• Maximum Power: 25 W

• V.S.W.R: < 1.5

• Polarization: Vertical

• Emission: Omnidirectional

• Gain: 5 dBi

• Cable Type and Length: RG-316, 150 ± 20mm

• Rod Length: 525 mm

• Rod Section: 1mm²

• Rod Elevation: 74º

• Connector: FME m.

4G Technical Data

• Frequency Range: 690 ÷ 960 MHz, 1427 ÷ 1518 MHz, 1710 ÷ 2200 MHz, 2300 ÷ 2690 MHz

• Impedance: 50 Ω

• V.S.W.R: 1.5 ÷ 4 typical

• Polarization: Vertical

• Emission: Omnidirectional

• Gain: 690 ÷ 960 MHz 2 dBi, 1427 ÷ 1518 MHz 3 dBi, 1710 ÷ 2200 MHz 4 dBi, 2300 ÷ 2690 MHz 5 dBi

• Cable Type and Length: RF-316D, 250 ± 20mm

• Connector: Fakra f "D" (Bordeaux)
