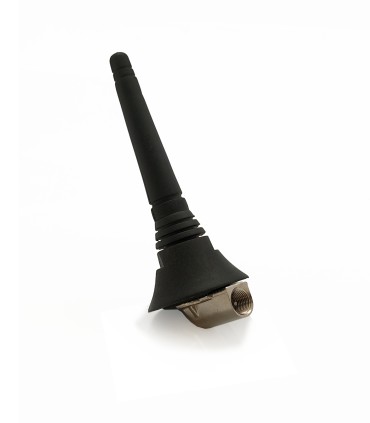

Antenna GSM/DCS (900-1800 MHz) 1/4, Without cable

Tecnical Data Telephone:

Antenna Type: 1/4 1 Mobile Antenna

Impedancia: 50 Ω

Frecuency Range:   GSM-ETACS-NMT: 880 ÷ 960 MHz   /   PCN-GSM: 1710 ÷ 1880 MHz

Max. Power: 20W

V.S.W.R.: 880 ÷ 915 less than 1.5

                 935 ÷ 960 less than 2.0

                1710 ÷ 1815 less than 1.5

                1815 ÷ 1880 less than 2.4

Emission: Omnidirectional

Gain: 2.14 dBi

Polarization: Vertical

Rod section: 1

Rod lenght: 60±5 mm

Rod elevation: 90º

Specifications:

Base dimensions: Height: 27mm - Diameter: 33.5mm

Net weight: 37g

Base Material: Hytrel

Color: Black

Temperature: -30ºC - +80ºC

Base connector: FME m.

EAN:8435757703799
