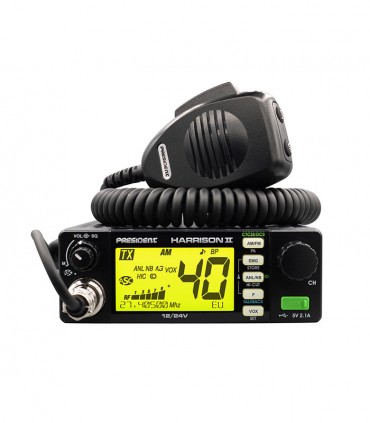

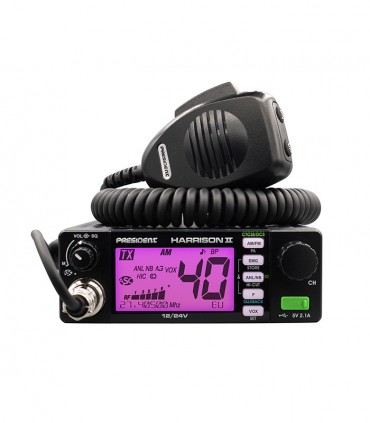

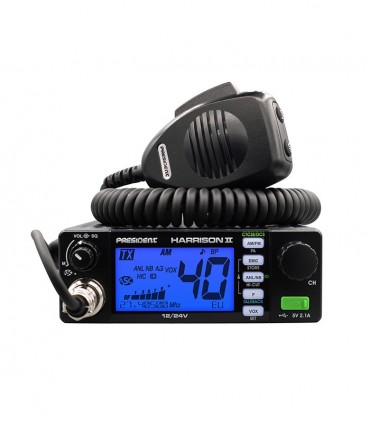

HARRISON-II
PRESIDENT Mobile CB radio, 40 channels, AM/FM with VOX function & 12/24 V
New CB radio by President, with 40 channels AM/FM and 12/24 volt power supply.
VOX build in.
Add to wishlist
Technical characteristics
Number of channels |
40 |
|
Modulation modes |
AM / FM |
|
Frequency range |
from 26.965 MHz to 27.405 MHz |
|
CTCSS |
38 tones |
|
DCS |
104 codes |
|
Antenna impedance |
50 ohms |
|
Power supply |
12 V / 24 V |
|
Size |
125 (L) x 165 (P) x 45 (H) |
|
DIN format |
Yes |
|
Weight |
0.9 kg |
|
Accessories supplied |
1 microphone UP/DOWN and its hanger
Mounting cradle
Screws |
Transmission
Frequency allowance |
+/- 200 Hz |
|
Carrier power |
4 W AM / 4 W FM |
|
Transmission interference |
inferior a 4 nW (-54 dBm) |
|
Audio response |
300 Hz a 3 KHz |
|
Emitted power in the adj. channel |
inferior a 20 μW |
|
Microphone sensitivity |
7 mV |
|
Drain |
1,7 A (con modulación) |
|
Modulated signal distortion |
1,8 % |
Reception
Maxi. sensitivity at 20 dB sinad |
0,5 μV - 113 dBm |
|
Frequency response |
300 Hz a 3 KHz |
|
Adjacent channel selectivity |
60 dB |
|
Maximum audio power |
2 W |
|
Squelch sensitivity |
minimum 0.2 μV - 120 dBm / maximum 1 mV - 47 dBm |
|
Frequency image rejection rate |
60 dB |
|
Intermediate frequency rej. rate |
70 dB |
|
Drain |
300 mA nominal / 750 mA maximum |
