Compatible con todas las radios actuales de PRESIDENT de 6 pines para CB y 10 metros.
JOHNSON-III

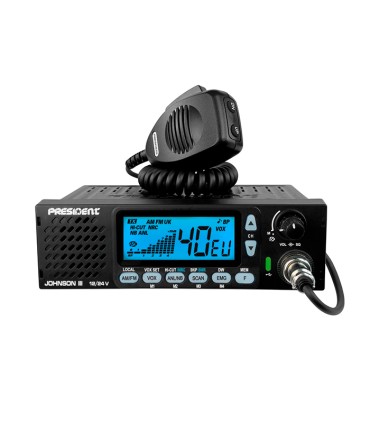

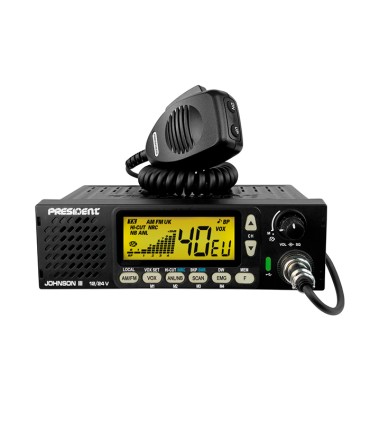

PRESIDENT CB Radio 40 AM/FM ASC VOX 12/24V
Features:
-
40 AM/FM channels
-
PRESIDENT channels
-
Up/Down channel selector
-
Volume adjustment and on/off
-
Manual squelch and ASC
-
Multifunction LCD screen
-
Level indicator
-
4 Memories
-
ANL, NB, HI-CUT, NRC filters
-
F/Menu function key
-
Switchable key beep
-
Switchable Roger Beep
-
Scan
-
Automatic SWR meter
-
Channel display
-
AM/FM mode switch
-
VOX
-
Electret or dynamic microphone
-
SWR (Power/SWR reading)
-
Emergency channel preset (EMG)
-
6-pin front microphone socket
-
External HP socket
-
Front USB Type-C port
-
NRC
-
UP/DN - ON/OFF
Backlight color:
Channels |
: |
40 |
Modulation modes |
: |
AM / FM |
Frequency range |
: |
26.965 MHz to 27.405 MHz |
Antenna impedance |
: |
50 ohms |
Antenna connector |
: |
SO-239 |
Power supply voltage |
: |
13.2 V / 26.4 V |
Dimensions |
: |
178 (L) x 120 (D) x 50 (H) mm |
Weight |
: |
750 g |
Included accessories |
: |
1 Up/Down microphone with holder
|
Transmission
Frequency Tolerance |
: |
+/- 300 Hz |
Carrier Power |
: |
4 W AM/FM |
Spurious Emissions |
: |
Less than 4 nW (-54 dBm) |
Frequency Response |
: |
300 Hz to 3 kHz |
Adjacent Channel Emission Power |
: |
Less than 20 μW |
Microphone Sensitivity |
: |
5.0 mV |
Power Consumption |
: |
≤ 1.5 A (13.2 V) / ≤ 0.8 A (26.4 V) |
Max Modulation Signal Distortion |
: |
2 % |
Reception
Max. sensitivity at 20 dB SINAD |
: |
0.5 µV - 113 dBm AM / 0.35 µV - 116 dBm FM |
Frequency response |
: |
300 Hz to 3 kHz |
Adjacent channel sensitivity |
: |
60 dB |
Max. audio power |
: |
W |
Squelch sensitivity |
: |
Min. 0.2 µV - 120 dBm / Max. 1 mV - 47 dBm |
Image frequency rejection ratio |
: |
60 dB |
Intermediate frequency rejection ratio |
: |
70 dB |
Consumption |
: |
13.2 V: 0.25 ~ 0.45 A / 26.4 V: 0.1 ~ 0.25 A |
