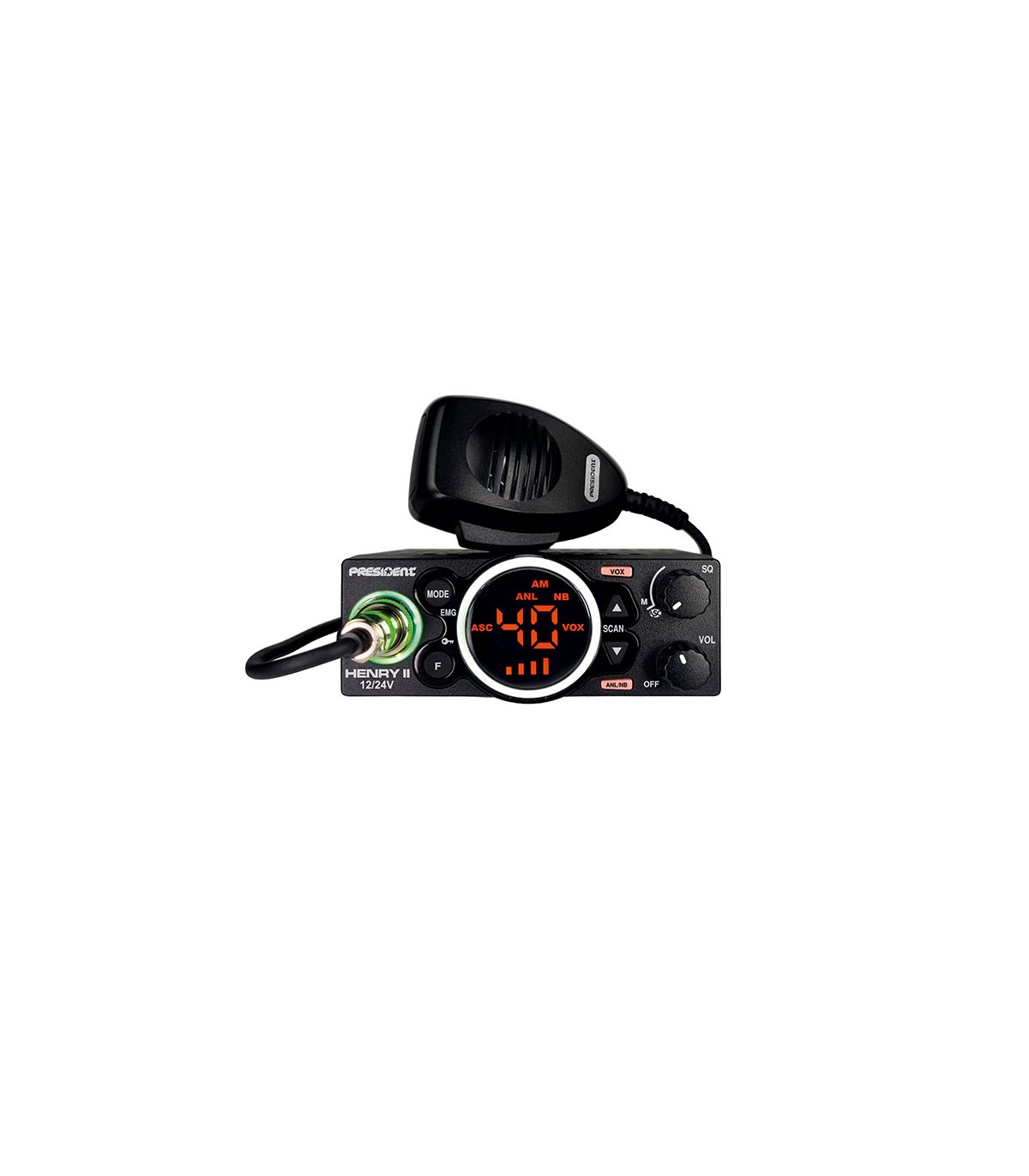

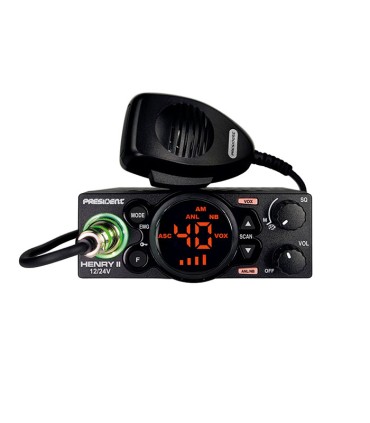

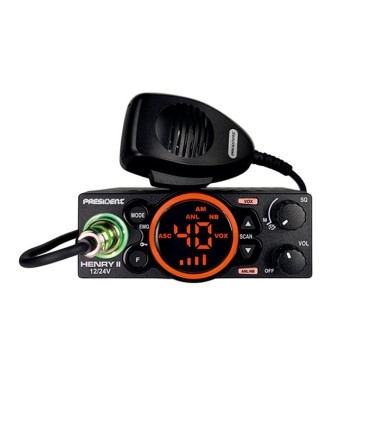

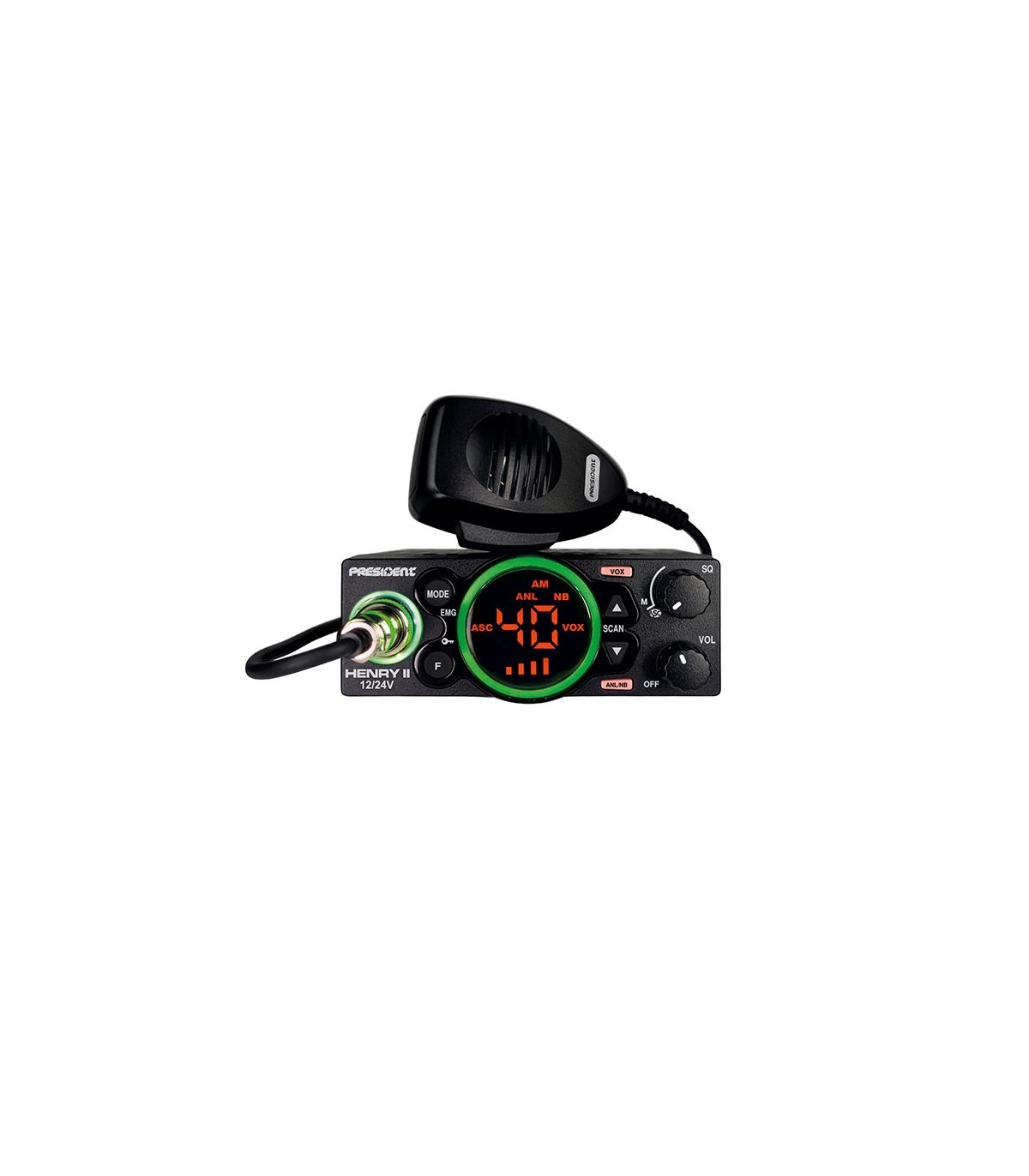

HENRY II AM/FM
PRESIDENT CB Radio, 12/24 V, AM/FM, 40 Channels
-
Dimensions (mm): 115 (W) x 105 (D) x 45 (H)
-
Power supply voltage: 12 V / 24 V
-
AM / FM
-
Channels: Scan
-
ANL filter
-
NB filter
Add to compare0
Add to wishlist
Display:
Colores del anillo:
General
-
Channels: 40
-
Modulation modes: AM/FM
-
Frequency range: 26.965 MHz to 27.405 MHz
-
Antenna impedance: 50 ohms
-
Power supply: 13.2 V / 26.4 V
-
Dimensions (mm): 115 (W) x 105 (D) x 45 (H)
-
Weight: 0.420 kg
Included accessories:
-
1 electret microphone with holder
-
1 mounting bracket with fixing screws
-
1 power cable with fuse
-
6 colored rings
Transmission
-
Frequency tolerance: ±300 Hz
-
Carrier power: 4 W
-
Spurious emissions: < 4 nW (-54 dBm)
-
Frequency response: 300 Hz to 3 kHz
-
Adjacent channel power: < 20 µW
-
Microphone sensitivity: 3.0 mV
-
Maximum current consumption: < 2 A (13.2 V) / < 1 A (26.4 V)
-
Maximum modulated signal distortion: 2 %
Reception
-
Sensitivity at 20 dB SINAD: 0.5 µV (-113 dBm) (AM) / 0.35 µV (-116 dBm) (FM)
-
Frequency response: 300 Hz to 3 kHz
-
Adjacent channel selectivity: 60 dB
-
Maximum audio power: 3 W
-
Squelch sensitivity: min. 0.2 µV (-120 dBm) / max. 1 mV (-47 dBm)
-
Image frequency rejection: 60 dB
-
Intermediate frequency rejection: 70 dB
-
Maximum current consumption: 200–500 mA (13.2 V) / 140–300 mA (26.4 V)
